Home > Products > Three Roll Mill > Ceramic three roll machine MTR-120E-450

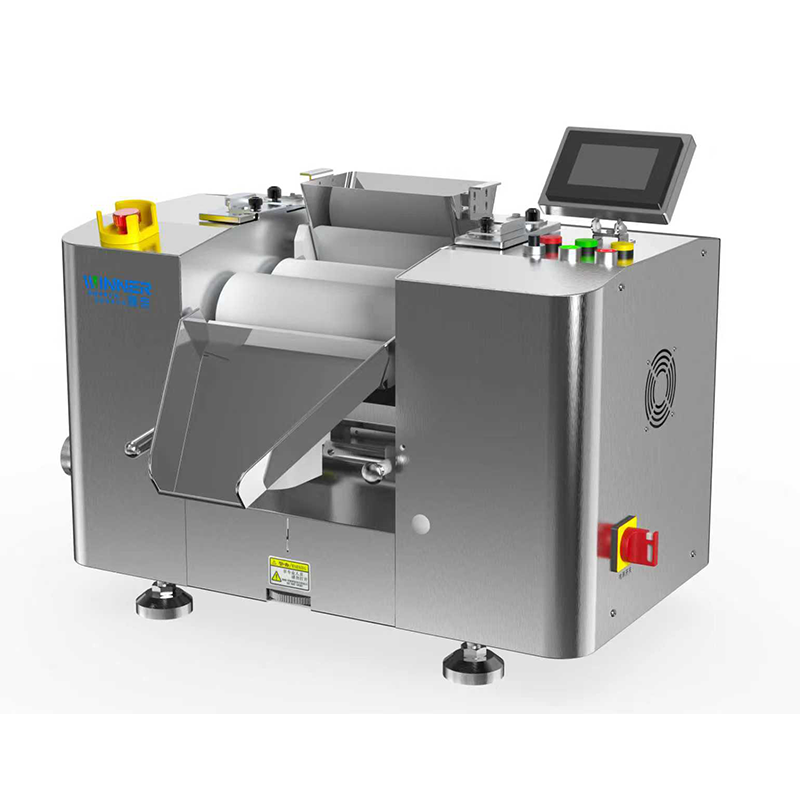

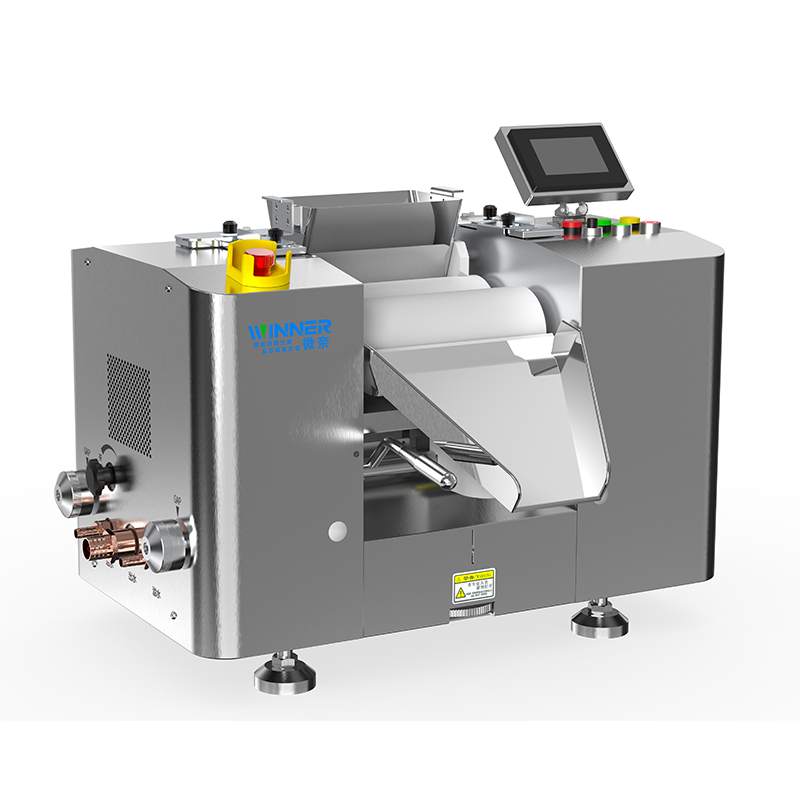

Ceramic three roll machine MTR-120E-450

  • • Adjustment accuracy up to 1μm
  • • Heating and cooling function available, suitable for high-viscosity materials in dispersion laboratories
  • • Single-handle roller gap adjustment and stepless speed regulation; Gap Mode / Torque Mode with torque curve display
  • • (Optional) Fully electronic control via industrial touch screen, supporting Gap Mode / Cleaning Mode, equipped with data communication interface
  • • High-precision ceramic rollers with multiple material options
  • • Gap calibration can be completed without machine disassembly
  • • Ceramic roller precision: Concentricity < 3μm, Straightness < 3μm, Surface Flatness < 0.3μm
  • • The torque curve dynamically reflects the dispersion state of materials
