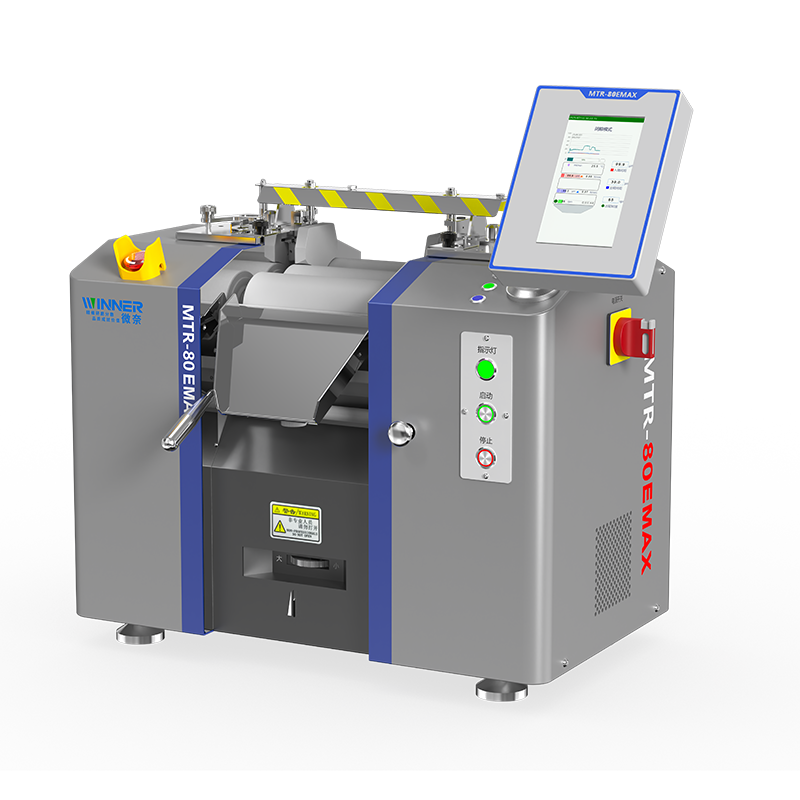

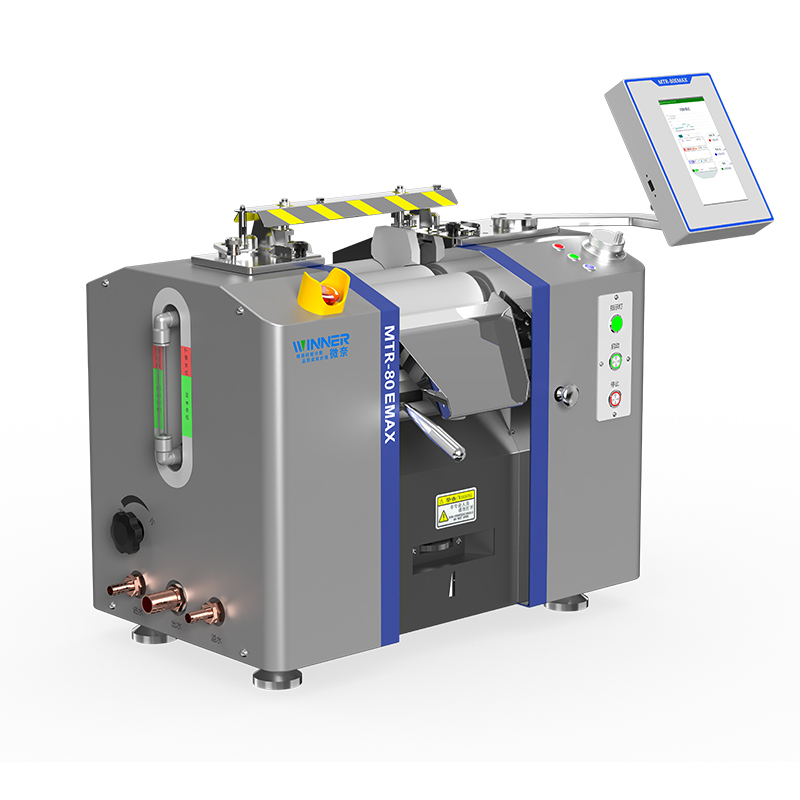

Ceramic three roll machine MTR-80EMAX
- • Adjustment accuracy up to 1μm
- • It supports heating and cooling, with real-time display of flow rate and roller temperature on the interface.
- • Full electronic control via industrial touch screen; Pressure Mode / Gap Mode / Cleaning Mode are available. It is equipped with a data communication interface and integrated pressure monitoring.
- • Adopting a brand-new gap adjustment mechanism with an extended force arm and enhanced rigidity, which can effectively suppress gap expansion.
- • Equipped with an innovative independent backlash elimination mechanism for improved operational stability.
- • Roller gap can be corrected online, with built-in zero-position self-calibration function in the background system.
- • Precision of ceramic roller: Concentricity ＜ 2μm, straightness ＜ 2μm, surface flatness ＜ 0.3μm.
- • Optional safety support stand complies with American standard ANSI B65 (Safe Operating Features for Three Roll Mills).
