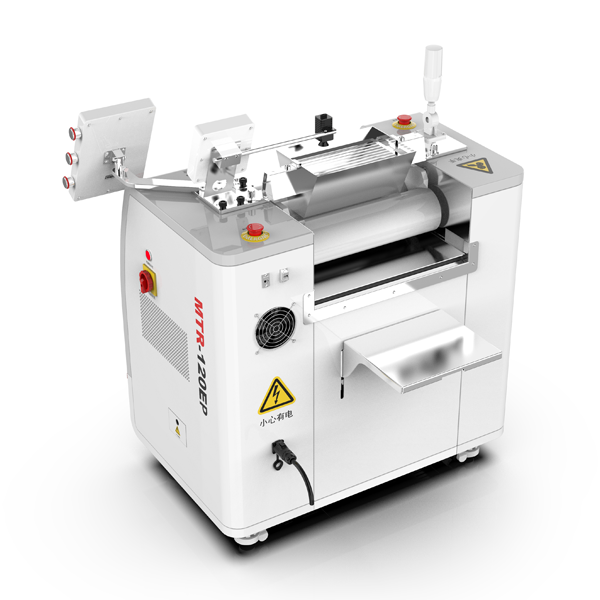

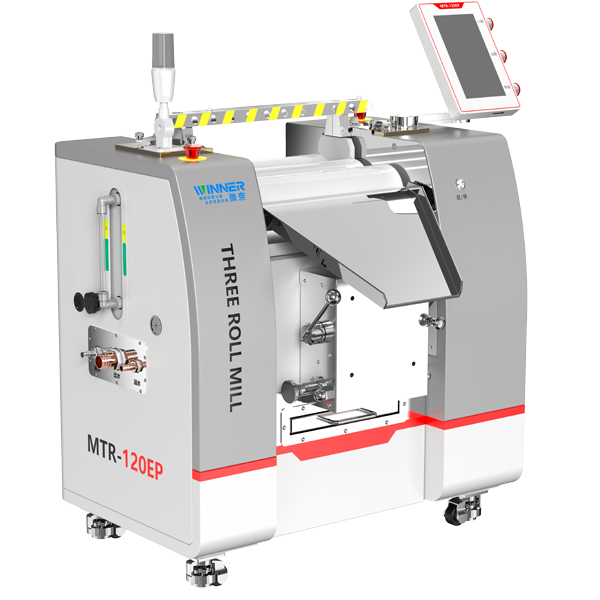

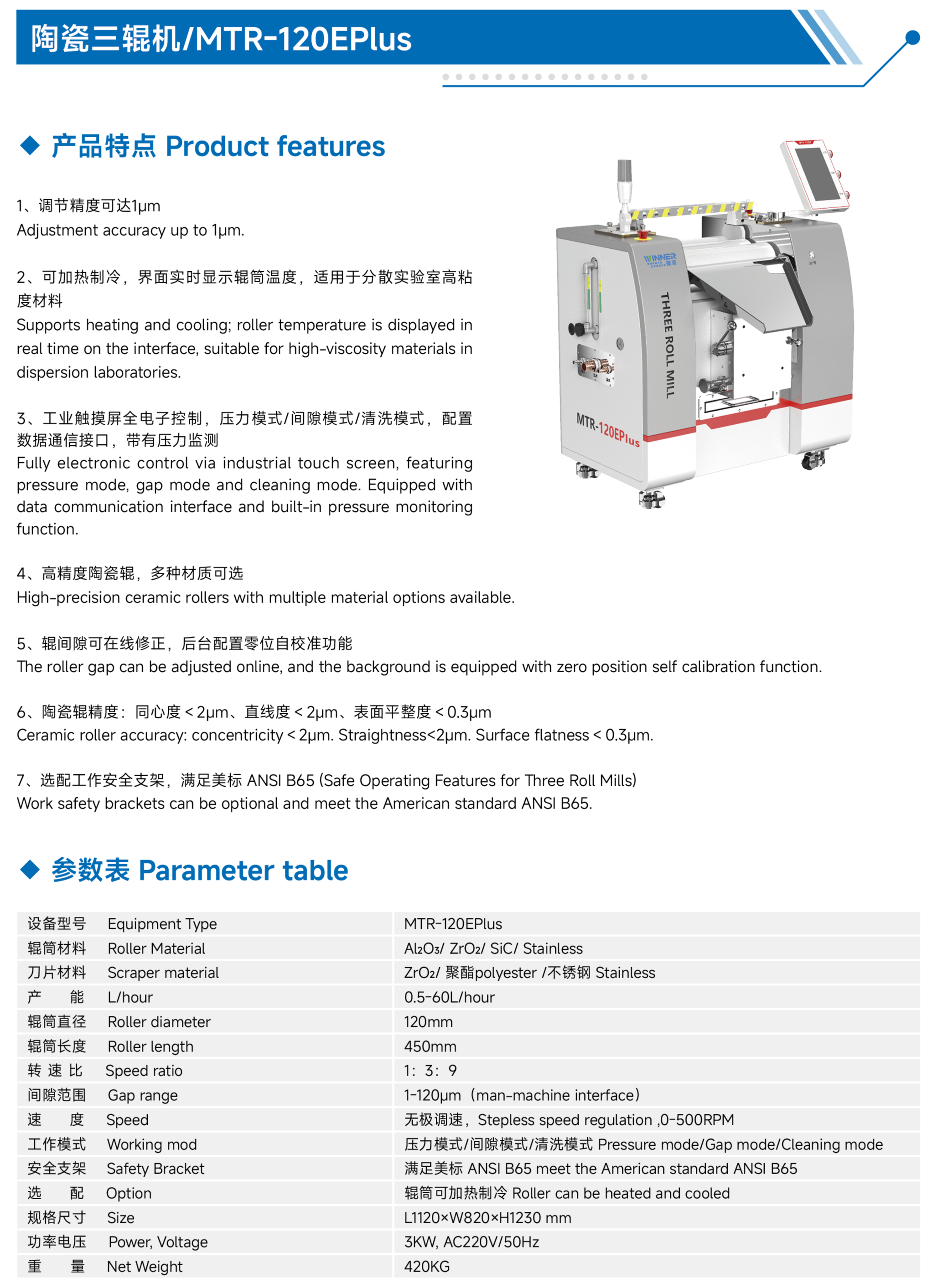

Ceramic three roll machine MTR-120EPlus
- • Adjustment accuracy up to 1μm
- • Heating and cooling are available with real-time roller temperature displayed on the interface, suitable for high-viscosity materials in dispersion laboratories
- • Full electronic control through industrial touch screen; Pressure Mode / Gap Mode / Cleaning Mode are supported. It is equipped with a data communication interface and built-in pressure monitoring
- • High-precision ceramic rollers with multiple material options
- • Roll gap can be corrected online, with background zero-position self-calibration function
- • Ceramic roller precision: Concentricity ＜ 2μm, straightness ＜ 2μm, surface flatness ＜ 0.3μm
- • Optional safety operating bracket complies with American standard ANSI B65 (Safe Operating Features for Three Roll Mills)
