Home > Products > Three Roll Mill > Ceramic three roll machine MTR-80EPlus

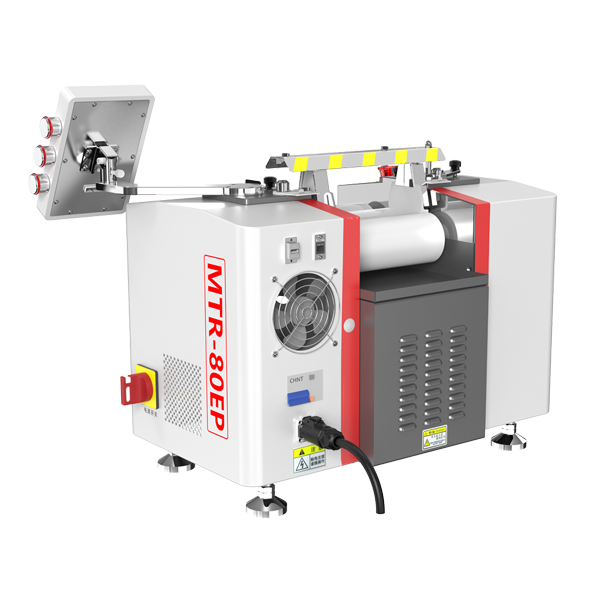

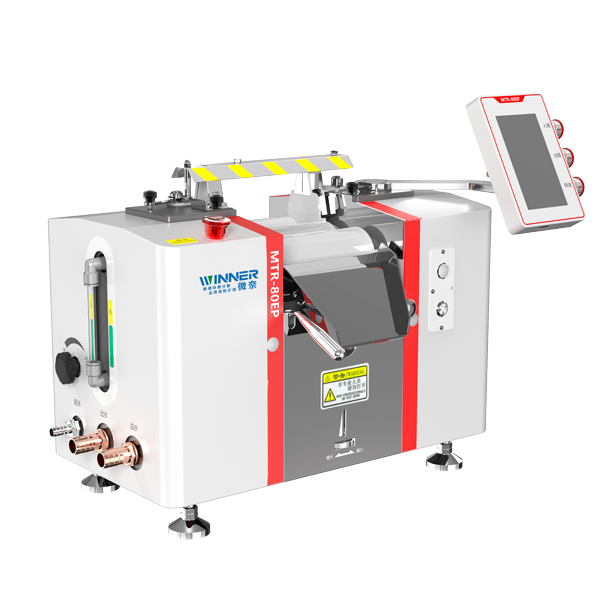

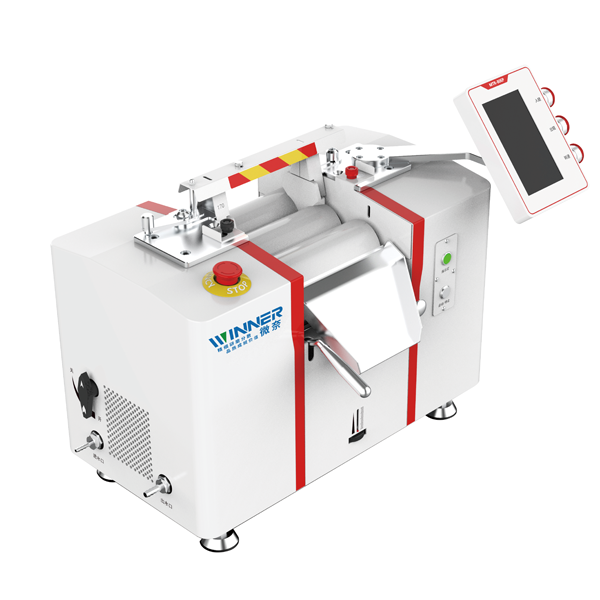

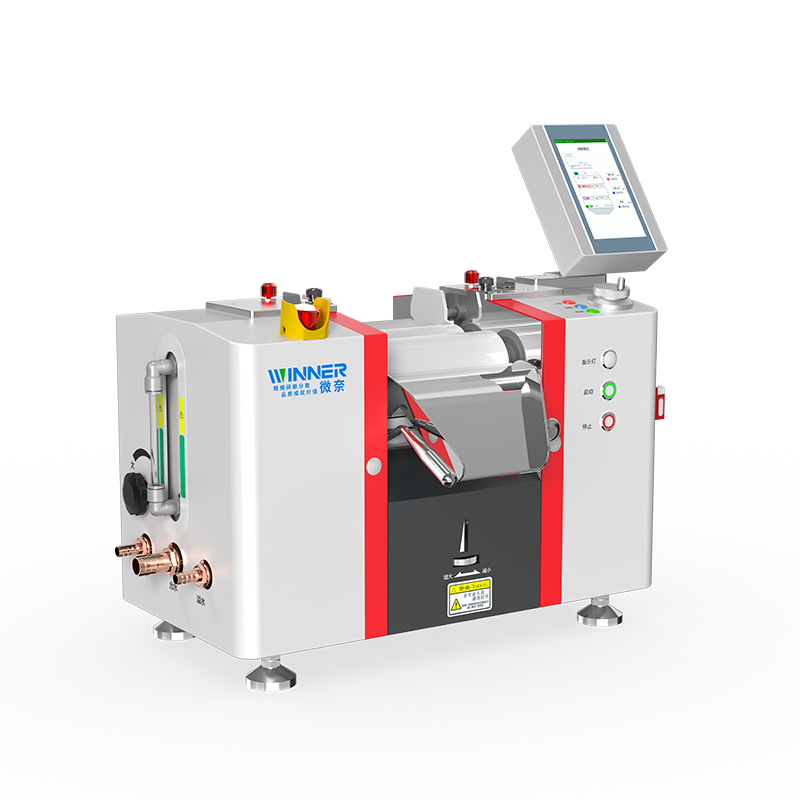

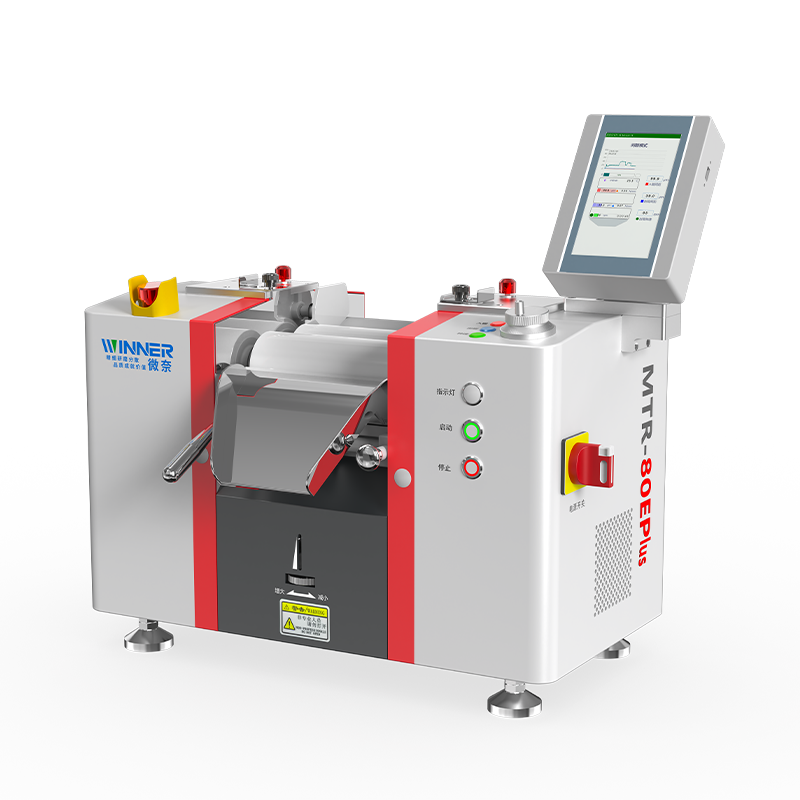

Ceramic three roll machine MTR-80EPlus

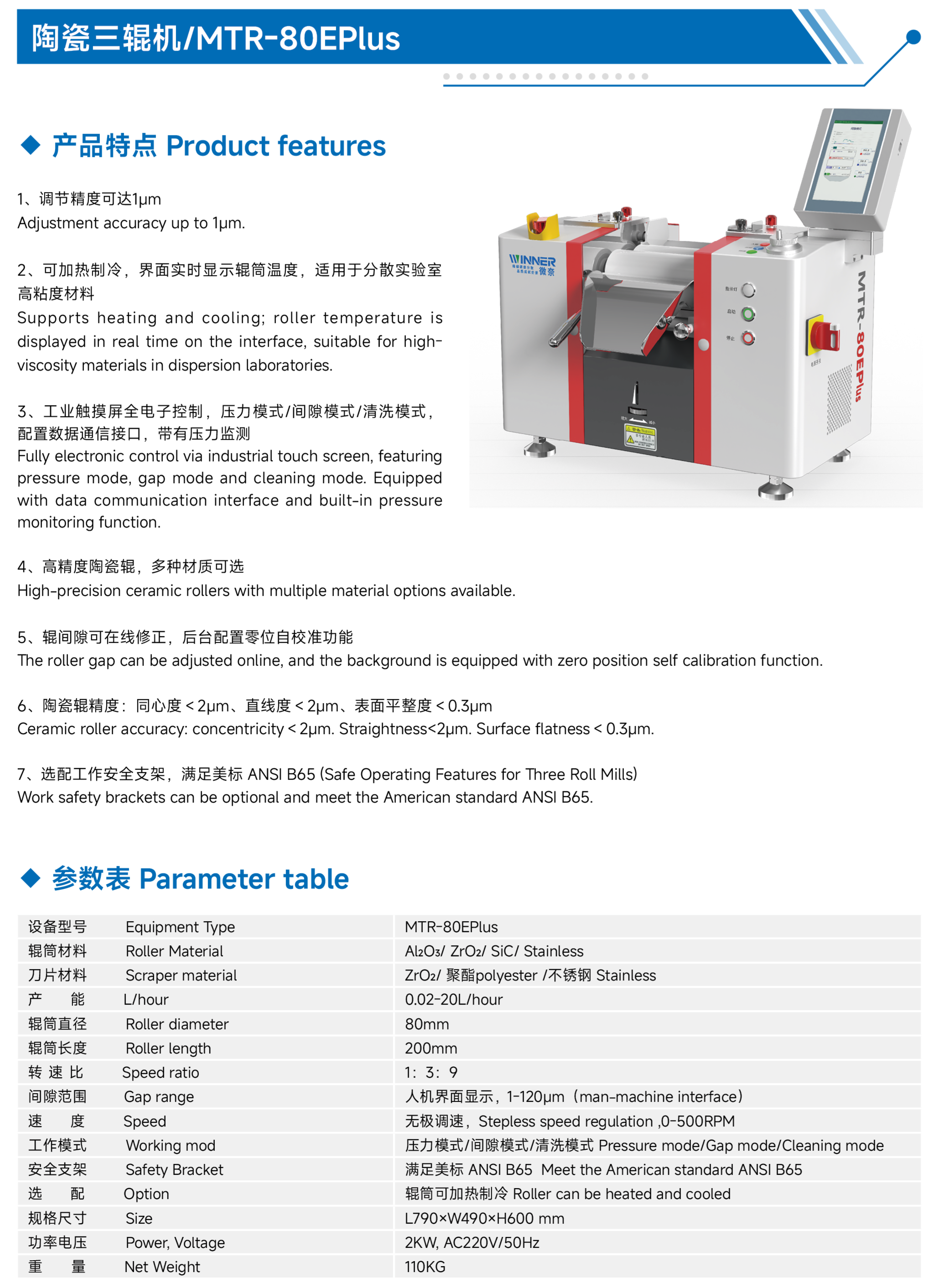

- • Adjustment accuracy up to 1μm
- • Heating and cooling available with real-time roller temperature display on the interface, suitable for high-viscosity materials in dispersion laboratories
- • Industrial touch screen electronic control with Formula Mode / Gap Mode / Cleaning Mode; equipped with data communication interface and pressure monitoring function
- • High-precision ceramic rollers with multiple material options
- • Roll gap can be corrected online, with zero-position self-calibration function configured in the background
- • Ceramic roller precision: concentricity ＜ 2μm, straightness ＜ 2μm, surface flatness ＜ 0.3μm
- • Optional safety support stand complies with American standard ANSI B65 (Safe Operating Features for Three Roll Mills)
- Introduction
